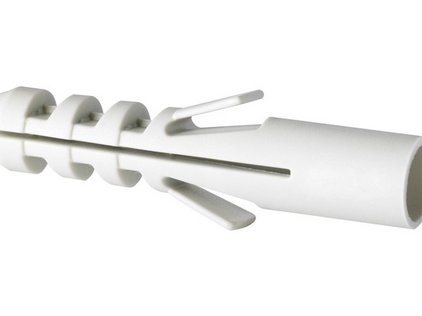

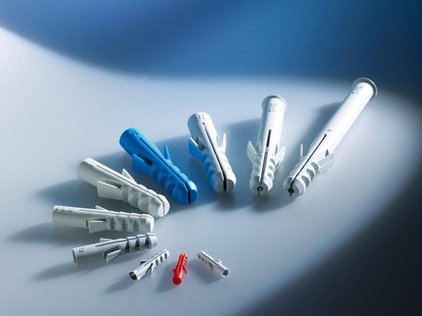

PROFI Nylonplugs

also in PE/PP quality

for standard and special fixings of all types

Special features

  • Extremely wide expansion fins guarantee optimal twisting protection
  • A central screw guide produces an internal bore, tapering off to a point, with more uniform and maximum spread
  • Expansion-pressure-free plug neck prevents the damaging of plaster and tiles

Suitable for

  • Concrete, full brick, hollow block, hollow stone, brick, certain gas-aerated concrete and calcareous sandstone



Installation information

  • For standard fixings with light loading, we recommend PROFI-Plugs in PE/PP quality.
  • For standard and special fixings with medium to heavy-duty loading, we recommend the utilisation of PROFI-Plugs in nylon quality.

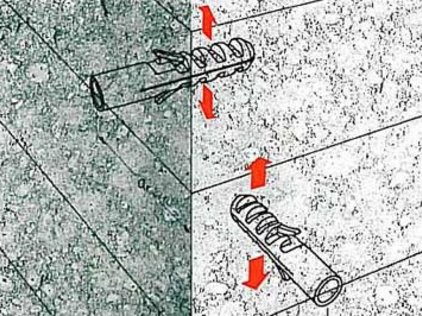

  • The separation distance to the wall edge should be at least one plug bolt length. In edge proximity, it is recommended to rotate the plug so that the direction of spreading acts parallel to the edge.

Technical data PROFI-Nylonplugs

Dimension mm Drill Ø mm Screw Ø mm
5 x 25 5 2,5 - 3,0
6 x 30 6 3,5 - 5,0
8 x 40 8 4,5 - 6,0
10 x 50 10 6,0 - 8,0
12 x 60 12 8,0 - 10,0
14 x 70 14 10,0 - 12,0
14 x 100 14 10,0 - 12,0
14 x 135 14 10,0 - 12,0
14 x 250 14 10,0 - 12,0
16 x 80 16 12,0 - 16,00
